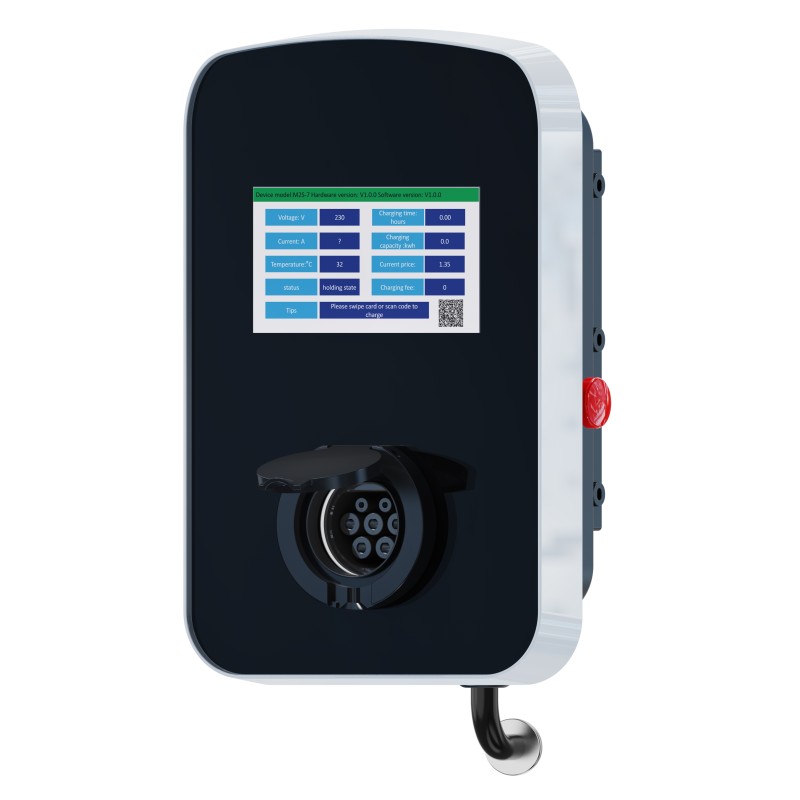

7KW Touch Screen AC EV Charger Wallbox Type2

» Product Model:

Z3E Series ( 3.5KW / 7KW / 11KW / 22KW )

» Input Voltage:

230Vac±15% / 400Vac±15%

» Rated Current:

16A / 32A

» Rated Power:

3.5KW/16A;7KW/32A;11KW/16A:22KW/32A

» Power Supply:

1 Phase / 3 Phase

Product Specification

» Charging Type:

Level 2

» Charging Socket:

1 Phase / 3 Phase ; With A Charging Gun Lock

» Reference Standards:

IEC 61851-1、IEC 62752、IEC 62196-2

» Power Plug:

Type F 16A-1 Phase / CEE Blue-3 Pin-32A-1 Phase /

CEE Red -5 Pin-16A- 3Phase / CEE Red -5 Pin-32A-3Phase

» Power Cable:

3 x 2.5 mm2 ( 1 Phase/16A)

3 x 6.0 mm2 ( 1 Phase/ 32A)

5 x 2.5 mm2 ( 3 Phase/16A)

5 x 6.0 mm2 ( 3 Phase/32A)

APP Control

» Share charging pile

» Select a Charging Mode

» Set Charging Current

User lnterface

» 7” LCD Indicator ; Touch Screen Option

Communication Interface

» Bluetooth ; Wl-Fl ; Ethernet ; 4G

Multiple application

» OCPP1.6J ; RFlD Card ; QR Code

Working Environment

» Working Temp.:

-30°C~+50°C

» Humidity:

5~95% Non-Condensing

» IP Rate:

IP 55 for Controller Box; IP 55 for Charging Plug

» Crushing Force:

No Damage Under 5000N

Material Performance

» Shell:

Fireproof PC

» Charging Plug Pin:

Pure Copper Silver Plated

» Charging Cable:

Pure Copper Core with TPU Cable Jacket ; Flame Retardant Grade UL94V-0

» Mechanical Life:

>10,000 Times

Electrical Protection

» Over current protection ; Residual current protection

» Ground protection ; Surge protection

» Over/Under voltage protection

» Over temp protection ; Leakage protection Type A (AC 30mA) / Type A+DC6mA (AC 30mA+DC 6mA)

Dimension & Package

» Control Box Size:

L384.8*W249.8*H156mm / L15.15"*W9.83"*H6.14"

» Cable Length:

5Meter /16.4ft/ Customized

» Inner Box:

L485*W310*H230 mm / L19.09"*W12.21"*H9.06"

» Outer Carton:

L650*W505*H265 mm / L25.59"*W19.88"* H10.43" (2 pieces)

» Net Weight:

≤ 6.5KG (1 pieces)
